Αρχική Σελίδα /Προϊόντα/Βιότοπη δεξαμενή πίεσης/Building Material Stores Pressure 200L Stainless Steel Expansion Tank

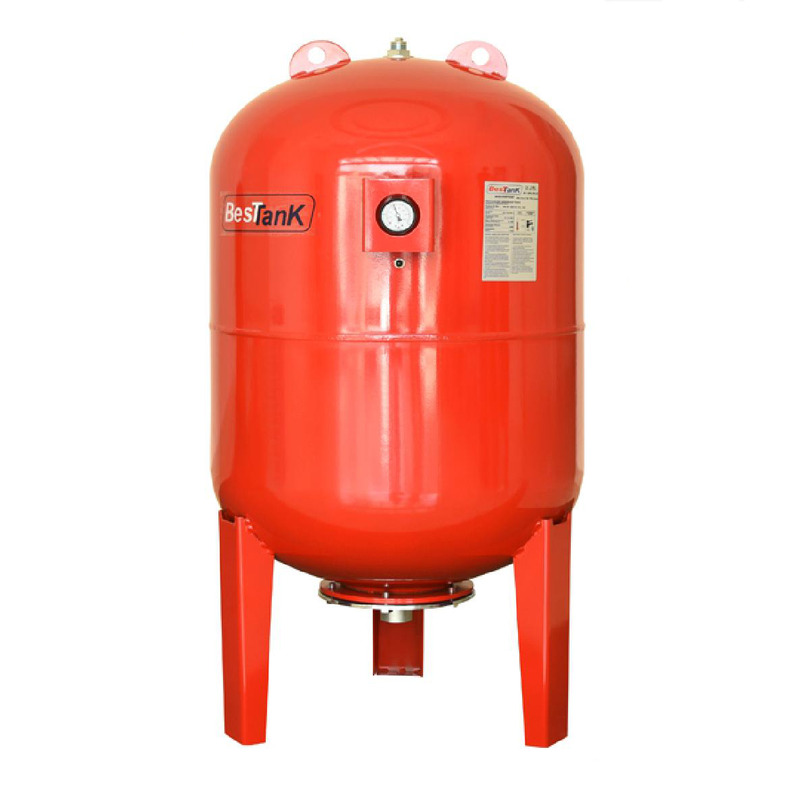

Building Material Stores Pressure 200L Stainless Steel Expansion Tank

1.0 Pieces
MOQ
Building Material Stores Pressure 200L Stainless Steel Expansion Tank
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: Pressure vessel
Dimension(L*W*H): 585 mm x 585 mm x 1100mm
Capacity: 200LT
Weight: 40.5KG
Volume (m³): 0.407
Design Pressure(MPa): 8-10-16-25
Max Working Pressure(MPa): 25 MPa
Working Temperature(℃): -10 - 100 ℃
Warranty: 2 years
Key Selling Points: Energy saving
Applicable Industries: Building Material Shops
Showroom Location: Turkey, Viet Nam, India, Thailand
Working Pressure: 8Bar 10Bar 16Bar 25Bar
Tank Colour: Blue Red Green Almond
Connection: 1-4/1''
Membrane: EPDM/BUTYL ( made in Italy)
Working Temperature: -10C-100C
Per-Charge Pressure: 3Bar
After-sales Service Provided: Video technical support, Online support
After Warranty Service: Online support
Local Service Location: Turkey, Viet Nam, India, Thailand, South Korea
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Export Carton with Bubble bag /OPP bag, on carton can make according customer logo also, have each tank size and mold on the carton.
Supply Ability: 10000 Piece/Pieces per Month
Περιγραφή προϊόντων
Product Description

200LT PRESSURE & EXPANSION VERTICAL WITH LEG
Heating Series TANKS ( CHANGEABLE MEMBRANE )

8BAR/10BAR / 16BAR / 25BAR
Model: BHT-200VL-H
Diameter : 585 mm
Height : 1100 mm
Connection : 1-1/4" BSP/NPT
BESTANK PRESSURE & EXPANSION TANK SPECIFICATIONS
Tank Metal Body
*Interchangable membrane with screw connection flange cover at the bottom of the tank
*Flange cover and water connector made of stainless steel material
*Resistant up to 8bar - 10bar - 16bar - 25bar
*Outer surface with epoxy powder paint
*All tanks PED-CE Certified
Option: Flanges available in carbon steel upon request

Membranes
Made in Italy EPDM / BUTYL
*High quality EPDM / BUTYL membranes , hygienic certifications approved by European Union and USA Institutions
*DIN4807-3, NSF-61, WRAS, BS-6920 certificates available
Option: Butly membranes available upon request
Colour;
Orginal Colour : Blue-RAL5015 ; Red-RAL3020 ; White-RAL1013 ; Green-RAL6016
Product Paramenters
Company Profile
BESTANK International is a global key-producer ( jointventure Turkey and China ) of various type of pre-pressurized
surge&expansion&pressure tanks, Our main product ranges are ;
* BESTANK Potable Water Pressure Tanks from 2lt up to 10.000lt;
* BESTANK Heating Series Expansion Tanks from 2lt up to 10.000lt
* BESTANK Solar Series Expansion Tanks from 2lt up to 2000lt
* EDS GLOBAL 5 Years Warranty Fix Diaphragm Tanks from 2lt up to 500lt ;
* Stainless Steel Flexible Hoses from 1inch to 2inch / DN19 to DN50
* EPDM/Butyl Bladders For Booster/Hydrophore&Expansion Tanks
* Reverse Osmosis Storage Tanks
* Other Accessories Such As Pressure Switches, Float Level Switches, Pressure Gauges, Brass 5 Way Connectors with/without
CheckValves etc...
Website : www.bestank-international.com
Exhibition
Packing & Delivery
Certifications
Why Choose Us
