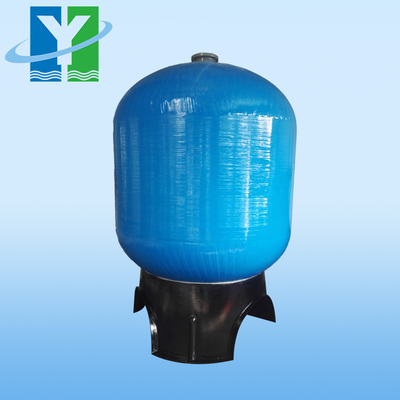

50L plastic tank frp 948 frp pressure vessel pressure vessel frp tank 44.6L

tank frp 948 frp pressure vessel plastic pressure vessel 50L

A)Material:

(1) Inner shell : Polyethylene (PE) seamless one-piece tank liner

(2)Outer shell :Continuous strands of fiberglass with high strength epoxy resin

(3)Bottom base: FRP reinforced tripod base

(4)Opening : 2.5" & 4" precision injected model with threaded opening for 8 " to 36" diameter tanks

(5)Opening :6 "Aluminum flange (anti-corrosion coating) opening for 36” to 63” diameter tanks

B)Working Pressure:  ≤1.0MPa(150PSI)

C)Working Temperature :≤49°C

D)Maximum Vacuum :127mmHg(5"Hg).

E)Maximum Temperature :40C (104F)

F)Passed Certificates:CE ;NSF ; ISO9001 etc.

G)Media : water

H)Warranty: 3 years

Application:  All feed water and waste water treatment application, including multi-media filter and softener.

Specification Sheet

HY Residential Small Size Series Pressure Tanks

HY Residential Series Pressure Tanks

HY  Series PressureTanks

HY-H Series Pressure Tanks

 Huayu is founded in 1995. In 2009, we established Huayu Jieming through collaborating with Dubai Jieming in 2009. We went into operation in Dongguan in 2012. In 2014,we collaborated with Shanghai Canature and purchased Langfang Hebei factory together. We move forward and have outstanding achievements in South,North and Middle China,even in overseas market. In recent 20 years, we have been engaged in production,manufacture and marketing of whole series of FRP pressure tank with support and care from various circles of society and hardworking of the staff.
We adhere to the specialized development strategy that we persist in doing well and precisely in FRP pressure tank field and growing stronger and larger in soft water treatment filed. We focus on quality and service. We are always keeping our feet on the ground to occupy the market by quality and establish our brand by integrity.
Talent is the essence to make our enterprise strong and specification is the essential.With the enhance of our strength, our company expand the investment in human resources continually. On the one hand,we recruit a great number of elites.One the other hand,we cultivate a enterprise management team which is professional, capable in business and manageable and strives for excellence by increasing training.Meanwhile, we formulate and perfect a series of specifications and management system to make the process of every department clear.All our staff cooperate with the order and serve as a guarantee for the realizing of business objective.
In the future,our Canature Huayu will continue to adhere to the concept of unity,honesty,practicability and innovation and ensure continual,healthy and fast development by strengthening specifications and management,establishing elite team,cultivating advanced culture and building qualified branch.During continuous development,we offer professional water treatment tank and multidirectional qualified service to our customers. Interiorly, we create good growth platform for our staff. We create value for society and promote our self-development continually.
Although the road is endless and faraway,we will still strive for the excellence.We hope all sectors of society unify together and protect and utilize the global water resource environment with all our heart and duty.
Let’s save and love the water together.Let’s make our water resource environment more beautiful.
