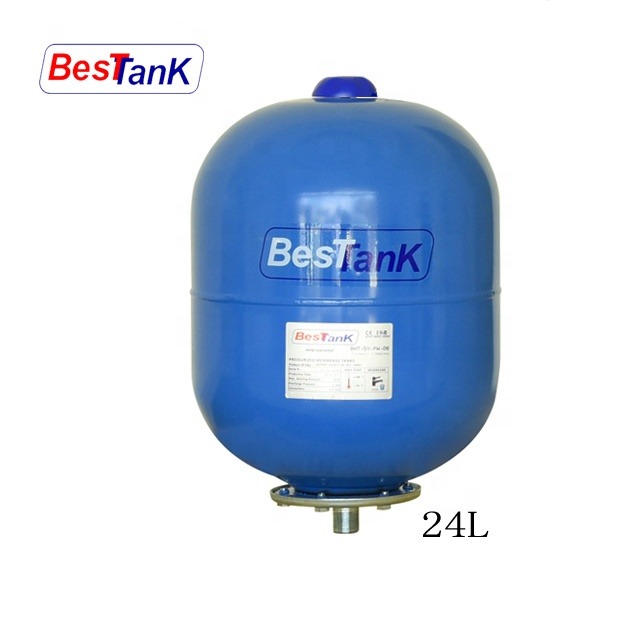

24lt 24L Pressure Tank Water Pump System Vertical Pressure Tank Expansion Tank

24LT PRESSURE & EXPANSION VERTICAL WITH LEG
POTABLE WATER TANKS ( CHANGEABLE MEMBRANE )
8BAR 10BAR / 16BAR / 25BAR
Model: BHT-24V-PW
Dimension:
Diameter :300 mm
Height : 440mm
Connection : 1 inch / 3/4''

BESTANK PRESSURE & EXPANSION TANK SPECIFICATIONS

Tank Metal Body

*Interchangable membrane with screw connection flange cover at the bottom of the tank
*Flange cover and water connector made of stainless steel material
*Resistant up to 8bar - 10bar - 16bar - 25bar
*Outer surface with epoxy powder paint
*All tanks PED-CE Certified
Option: Flanges available in carbon steel upon request

Membranes
Made in Italy EPDM / BUTYL

*High quality EPDM / BUTYL membranes , hygienic certifications approved by European Union and USA Institutions
*DIN4807-3, NSF-61, WRAS, BS-6920 certificates available
Option: Butly membranes available upon request

Colour;
Orginal Colour : Blue-RAL5015 ; Red-RAL3020 ; White-RAL1013 ; Green-RAL6016

BESTANK International is a global key-producer ( jointventure Turkey and China ) of various type of pre-pressurized surge&expansion&pressure tanks, Our main product ranges are ;
* BESTANK Potable Water Pressure Tanks from 2lt up to 10.000lt;
* BESTANK Heating Series Expansion Tanks from 2lt up to 10.000lt
* BESTANK Solar Series Expansion Tanks from 2lt up to 2000lt
* EDS GLOBAL 5 Years Warranty Fix Diaphragm Tanks from 2lt up to 500lt ;
* Stainless Steel Flexible Hoses from 1inch to 2inch / DN19 to DN50
* EPDM/Butyl Bladders For Booster/Hydrophore&Expansion Tanks
* Reverse Osmosis Storage Tanks
* Other Accessories Such As Pressure Switches, Float Level Switches, Pressure Gauges, Brass 5 Way Connectors with/without CheckValves etc...
