Χαρακτηριστικά

Προδιαγραφές

Condition: New

Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops

Showroom Location: Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, Thailand, Kenya, Argentina, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia

Material: Carton

Weight: 20kg

Size: 325x325x1700

Power: no

Warranty: 1 Year

Sand carbon filter: Sand carbon filter

internal pressure: 0.6Mpa

Diameter: 325mm

3000mmfilling material: Quartz sand, activated carbon

manualcontro: automatic and manual

material: frp

opening diameter: 2.5" -6"

Color: deep blue, sky blue, gray, natural color, black

operating pressure: 100PSI

opening temperature: 1-49Â°C

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: United Kingdom, United States, Italy, Germany, Philippines, Saudi Arabia, Indonesia, Russia, Thailand, Malaysia, Australia, Kenya, Argentina, UAE, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Uzbekistan, Tajikistan

After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: WOODEN CASE

Supply Ability: 5000 Set/Sets per Month

Περιγραφή προϊόντων

FPR water tank with durable material and high working pressure

FRP Tank
1) Adopt high-performance resin and glass fiber winding, Liner uses PE plastic, ABS, FRP high quality material to blow molding manufactory, using importing micro-computer controlling equipment to shape, anticorrosion, high or low resistance ,high tenacity, satisfy customers' different applicatioin well.

Specification:

Model	Volume	Diameter	Total Height	Net Height	Flow rate	Port
Spec.	L	mm	mm	mm	m3/h	Port
CK-818	10	200	445	435	0.1-0.3	Top Mount
CK-835	25	200	905	895	0.2-0.4
CK-844	30	200	1130	1120	0.2-0.5
CK-1035	40	250	905	895	0.4-0.8
CK-1054	60	250	1390	1380	0.5-1.2
CK-1252	85	300	1340	1330	1/2
CK-1265	105	300	1650	1640	1.5-2.5
CK-1354	105	325	1400	1390	1.8-2.5
CK-1465	150	350	1670	1660	2/3
CK-1665	190	400	1670	1660	2.5-4.5
CK-1665B	190	400	1670	1660	2.5-4.5
CK-1865	238	450	1670	1660	3.5-4.8	Side Mount
CK-2072	300	500	1750	1570	3/5
CK-2472	440	600	1850	1670	4/6
CK-3072	680	750	1850	1660	6/10
CK-3672	860	900	1850	1635	10/15
CK-4072	1050	1000	1850	1535	16-24
CK-4094	1400	1000	2400	2130	22-28
CK-4896	1800	1200	2400	2150	30-40
CK-6096	2700	1500	2400	2100	40-60
CK-7296	4800	1800	2400	2035	50-80
CK-8096	6600	2000	2400	2070	70-100

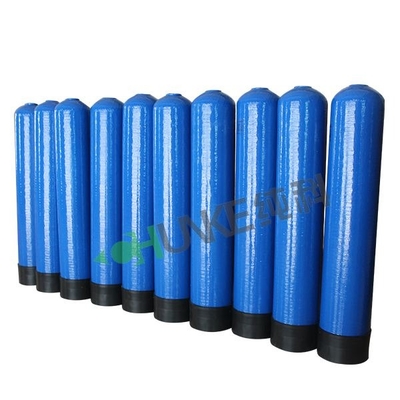

FRP tank pictures:

2) merits: pretty twisting pattern , sophisticated manufacture, long lifetime, etc.
3) dimension: 8''-36” linner PE or ABS, above 36″adopt FRP linner.
4) opening: 2.5“whorl, 4“whorl mouth, 6″flange.
